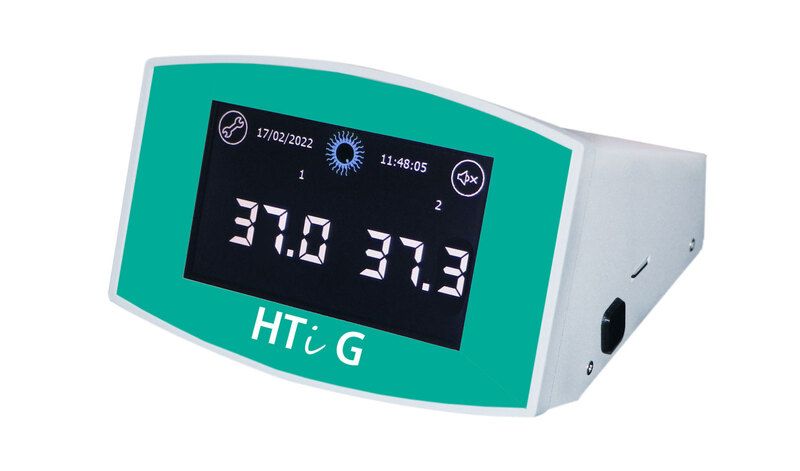

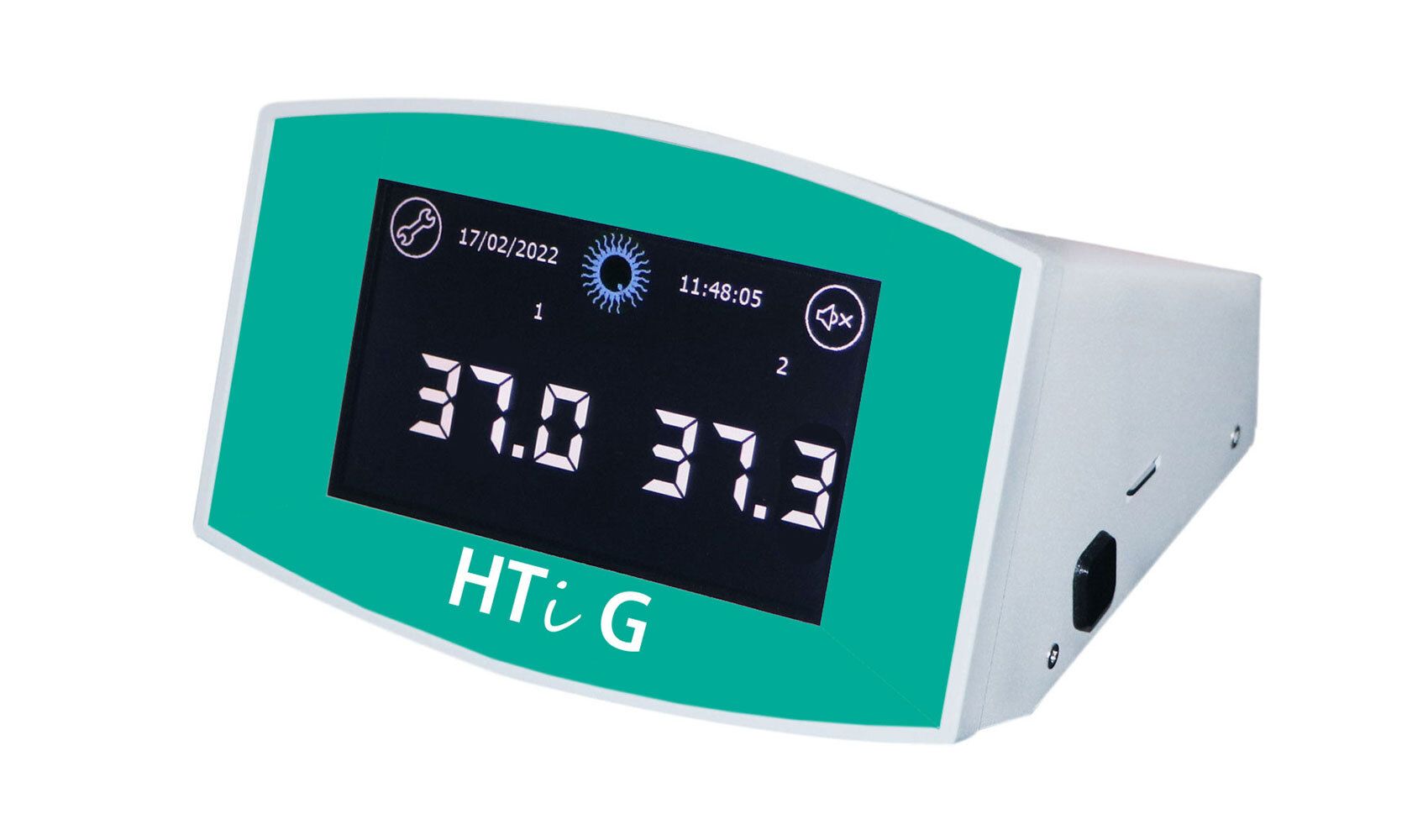

Control unit HTiG for heated glass inserts
Ref.: 12057/0201
Allows two devices to be connected: the heated glass insert and a heated microscope stage or a warming plate. An innovative heating technology provides highly accurate temperature control of the glass.
Product features
- Freely adjustable temperature range
- Control accuracy: ± 0.1°C
- 4.3" color touchscreen
- Temperature display in °C or °F
- Data logging and readout via SD card (included)
- Visual/acoustic alarm in case of temperature deviation
- Alarm limits can be set separately for each connected device
- Power output: 160 W max.
- Dimensions: 155 x 100 x 150 mm
- Weight: approx. 3 kg
Your benefits
- Simple, intuitive operation via touchscreen
- Graphically animated user guidance
- Highly precise temperature control
- Compact footprint
- Logging function for quality control and traceability
