Control unit HTi 50

Ref.: 12057/0100

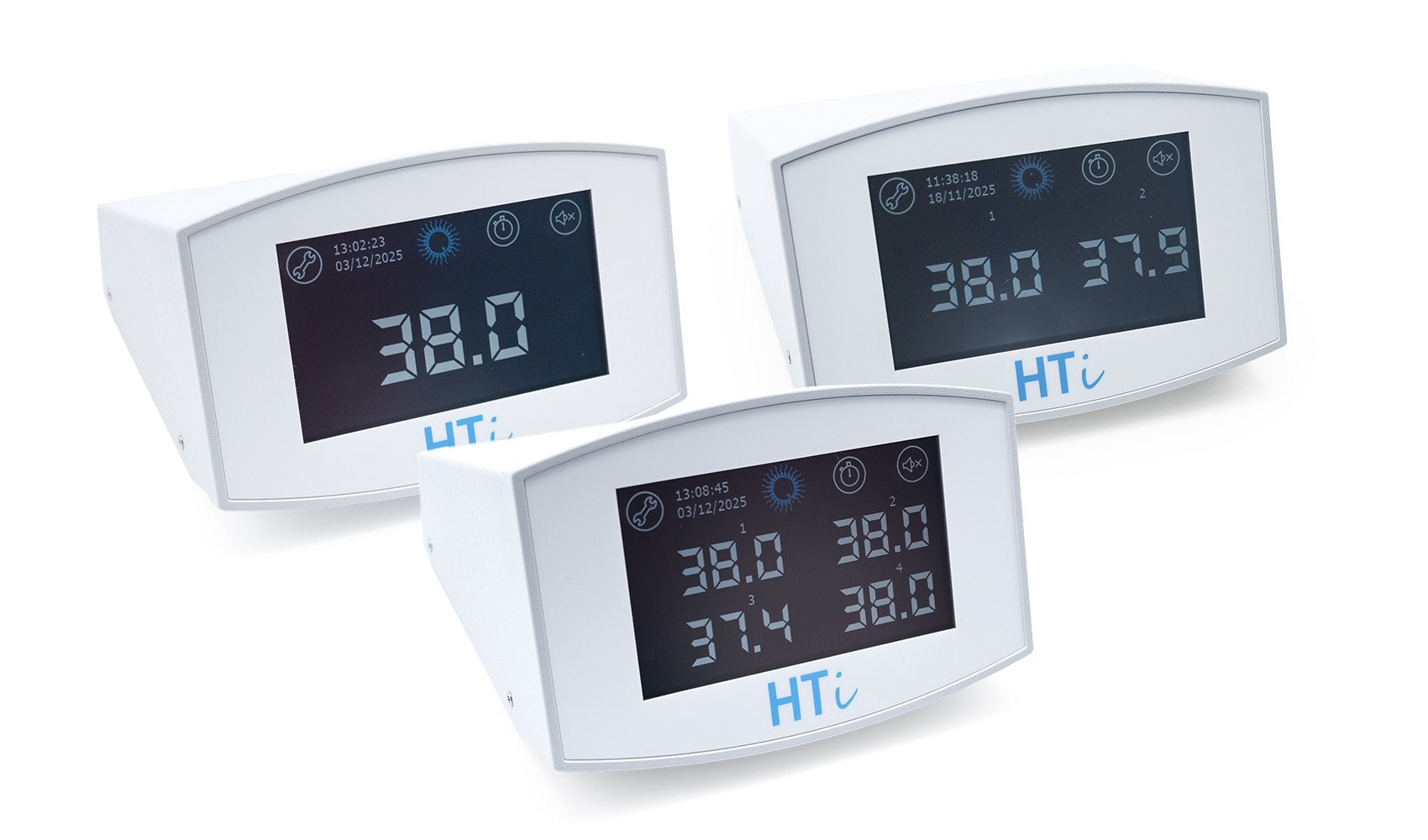

The HTi is a multichannel control unit with touch display and data recording.
For one heating system or warming plate.
Add to request list

Your benefits

  • Easy-to-read touch screen display: providing a good view of the actual temperature, also from a distance
  • Ideal size: small footprint to fit in the smallest laboratory
  • Data logging: measurement data can be logged and stored as the device is equipped with an SD-card that records temperature values over a long time period
  • Extended options for combination: all HTi versions can be combined with any Minitube heated microscope stage, Minitube warming plate and bead bath
  • Maximum connection safety: control units from Minitube are equipped with a 9-pole SUB-D connection system
  • Easy to keep clean

Product features

  • With 4.3" touch screen
  • Freely adjustable temperature range up to +55°C (131°F), control accuracy: +/- 0.1°C (0.4°F)
  • Data logging with SD card
  • Microprocessor control
  • Alarm function in case of deviation from temperature set point
  • Power output, total [W]: 160
  • Dimensions: 155 x 100 x 150 mm
  • Electrical connection: 115 V/60 Hz - 230 V/50 Hz
