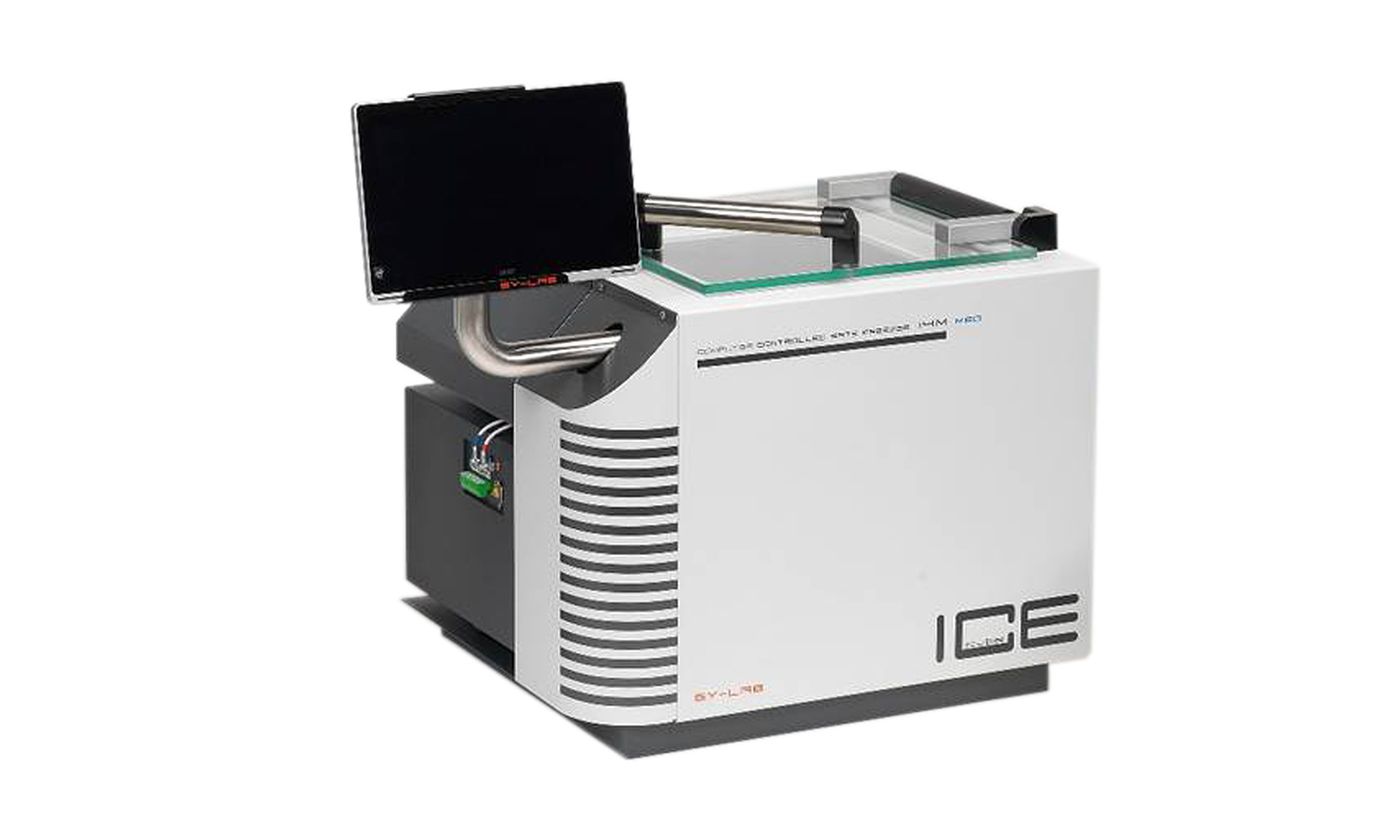

IceCube 14M-A, Automatic freezer with Windows® tablet, 230 V

Ref.: 16820/8000
Compact, computer controlled biological freezer for semen and embryos, with comfortable data input and automatic recording of the freezing curve.
Add to request list

Product features

  • Includes Connector kit for LN2 pressure container
  • Operating system: Windows® 8 or higher
  • Freezing chamber 297 x 317 x 378 mm (W x D x H)
  • Straw capacity: 3450 x 0.25 ml or 2300 x 0.5 ml straws (double racks) per freeze cycle
  • Chamber volume: 36 l, with glass door, stainless steel
  • Temperature range: +40°C to -180°C
  • Freezing rates: 0.01 to 60°C/min
  • Heating rates: 0.01 to 15°C/min
  • Display accuracy: 0.01°C
  • Weight: 39 kg
  • Dimensions: 630 x 510 x 550 (860) mm (W x D x H) (height with open lid)
  • Electrical connection: 230 V, 50/60 Hz

Your benefits

  • Programming of multistage freezing curves
  • Variable start temperature
  • Data recorded for every single freezing cycle
  • Different sizes (M + S), functions (+/- autoseeding for embryos) and technical setups (+/- touchscreen, with PC, laptop or tablet) to suit the users' specific needs
  • Temperature curves as well as crystallization inside straws can be observed during the freezing process
  • Compact design
  • Easy operation
