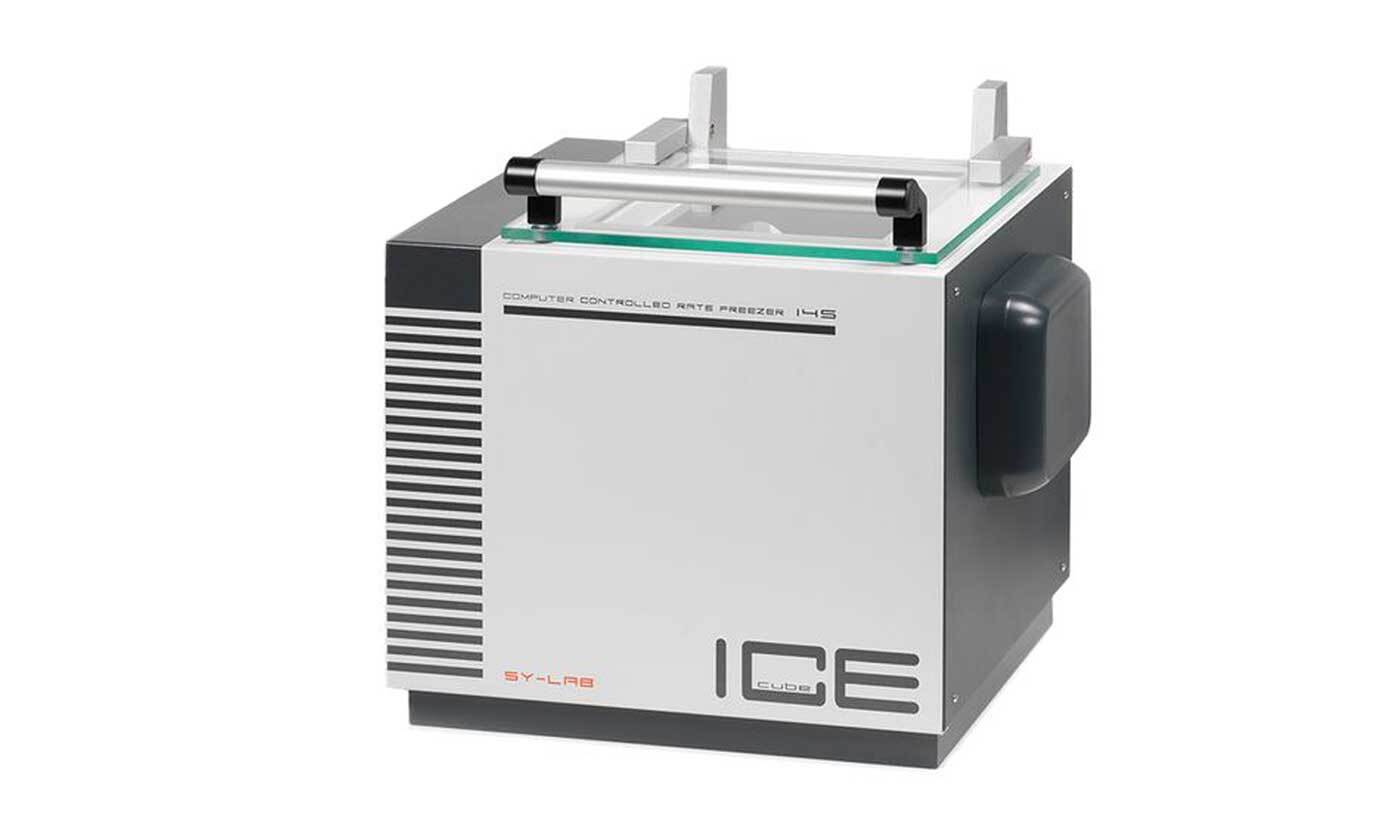

IceCube 14S-A, Automatic freezer without monitor and PC, 230 V

Ref.: 16821/1000
Compact, computer controlled biological freezer for semen and embryos, with comfortable data input and automatic recording of the freezing curve.
Add to request list

Product features

  • Data capture and processing via PC (PC not included)
  • Includes Connector kit for LN2 pressure container
  • Requirements for the PC (or laptop): operating system Windows® 7, 8.1 or 10, a free serial interface (9-pole) and USB port
  • Temperature range: +40°C to -180°C
  • Freezing chamber 217 x 217 x 348 mm (W x D x H) for max. 1080 x 0.25 ml or 0.5 ml straws per freeze cycle
  • Chamber volume: 16.4 l, stainless steel, use of handling rack (Ref. 16821/5030) recommended
  • Required space without PC and LN2 pressure container: 540 x 420 x 520 (820) mm
  • Electrical connection: 230 V, 50/60 Hz
  • LN2 inlet on backside, central part

Your benefits

  • Programming of multistage freezing curves
  • Variable start temperature
  • Data recorded for every single freezing cycle
  • Temperature curves as well as crystallization inside straws can be observed during the freezing process
  • Compact design
  • Easy operation
