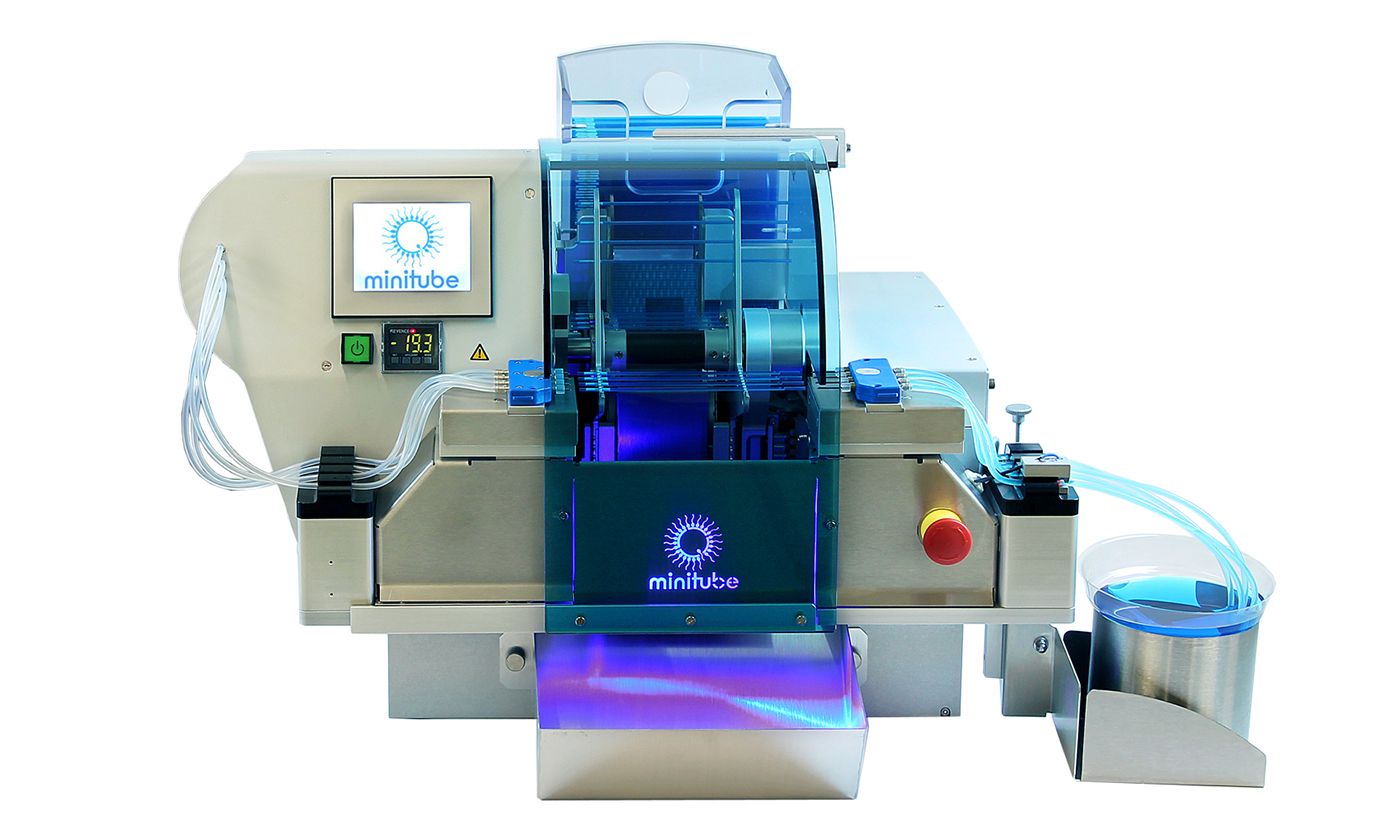

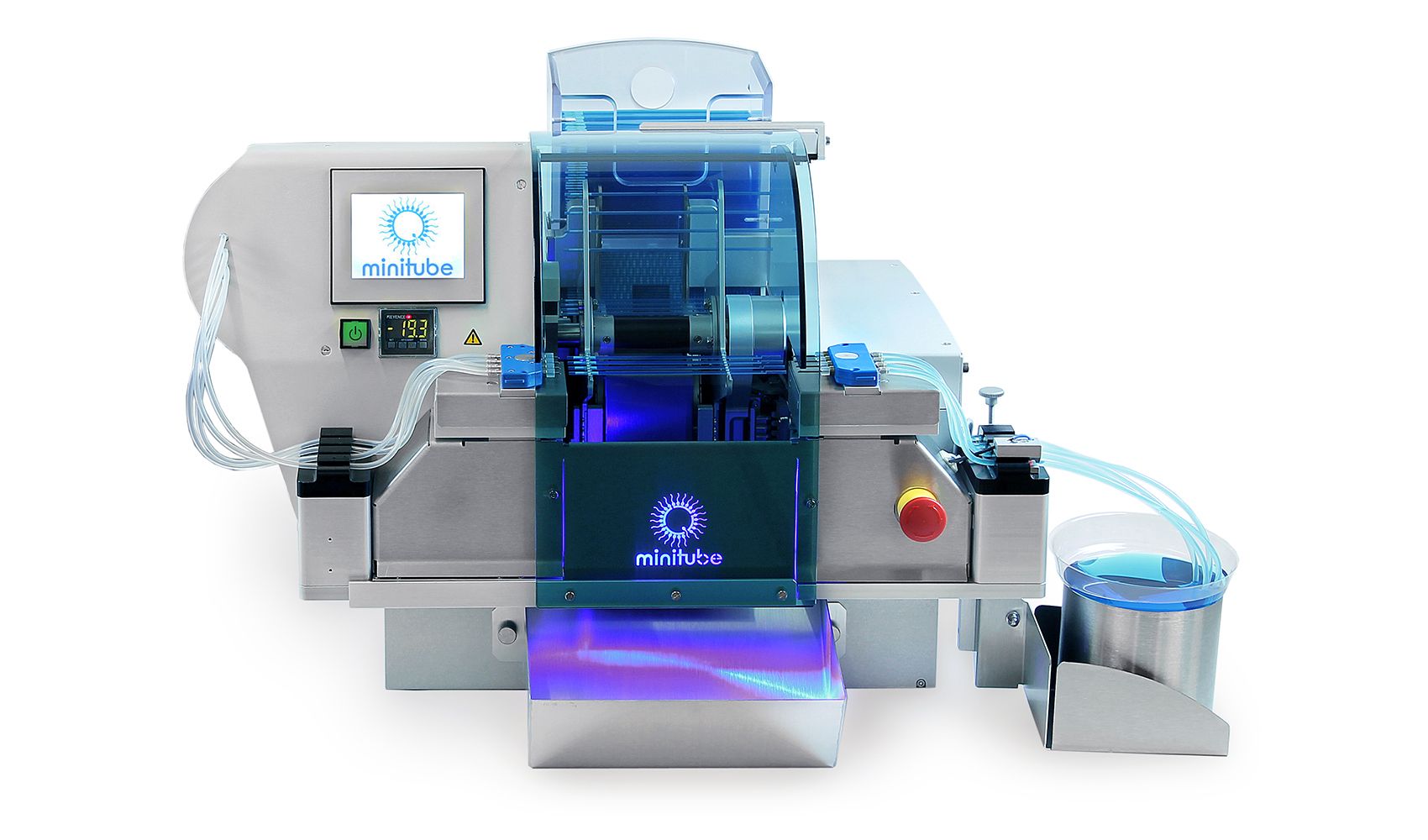

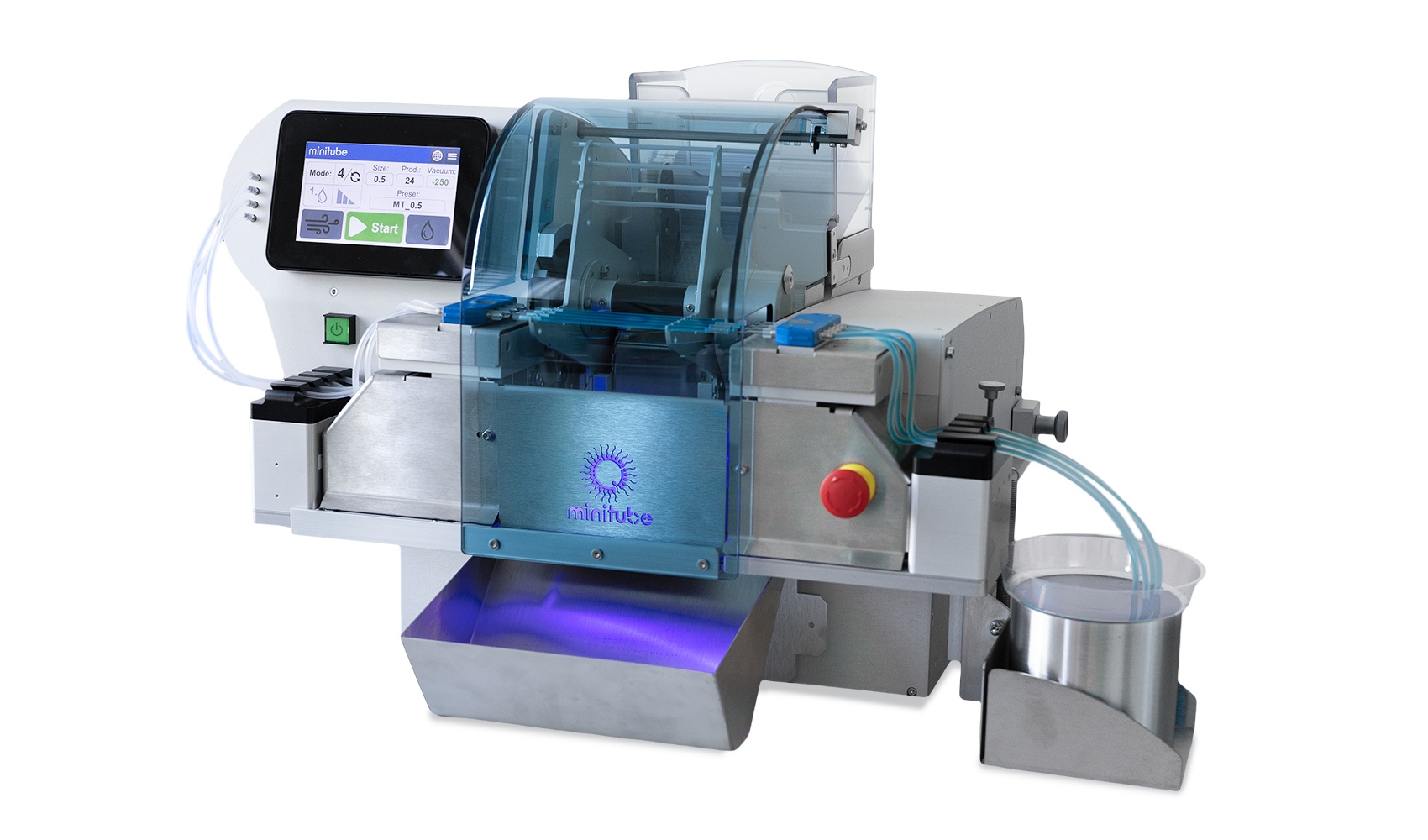

MPP Quattro, automatic filling and sealing machine for semen straws
Ref.: 13018/0000
Fast, robust and easy to operate filling and sealing machine with a wide range of applications. Automatically fills and seals up to four straws at a time (both 0.25 and 0.5 ml straws).
Product features
- Can be operated in a cooled condition or at room temperature as a stand-alone unit or in combination with the MiniJet printing system
- Capacity: approx. 14,000 straws/hour
- Exchangeable hopper, capacity: 2,400 MiniStraws (0.25 ml) or 1,200 medium straws (0.5 ml)
- Exchangeable compact ultrasonic sealing unit
- External ultrasonic generator that can be placed up to 2.5 m away (ON/OFF switch on the machine)
- PLC microprocessor control
- Integrated vacuum sensors for optimal filling from the first 4 straws
- Vacuum unit with integrated tank: level controlled by PLC, set value can be easily modified on the touch screen
- High-resolution TFT touchscreen with responsive control
- Memory function for up to 9 sets of filling and sealing parameters for different straws or extenders
- Multi-level access: user (view), admin (edit, password-protected), service (restricted)
- Integrated I/O diagnostics for fast troubleshooting
- Machine dimensions (W x H x D): 650 x 390 x 500 mm plus ultrasonic generator 380 x 400 x 220 mm
- Power supply: 115 V or 230 V/50-60 Hz
Your benefits
- Fast and easy conversion between 0.25 and 0.5 ml straws and vice versa (1-2 minutes)
- Filling of 1 to 4 straws at a time: freely selectable by the operator
- Optimal filling of the first straws saves semen and increases the number of usable straws
- Semen saving: when the ejaculate is almost finished, the active filling needles are automatically reduced from 4 to 1 and the remaining semen from the inactive needles runs back into the reservoir
- Fully closed filling and sealing area for maximum hygiene and safety
- Touchscreen monitor for software control: easy to operate with color coded display, continuous display of number of filled straws,machine status, straw size
- Quick, easy and reliable changeover between settings for different straws and extenders; no need to repeatedly change individual settings on e.g. ultrasonic generator or vacuum controller
- Quick preparation for a new ejaculate: filling head contains all four filling needles and can be changed quickly and easily
