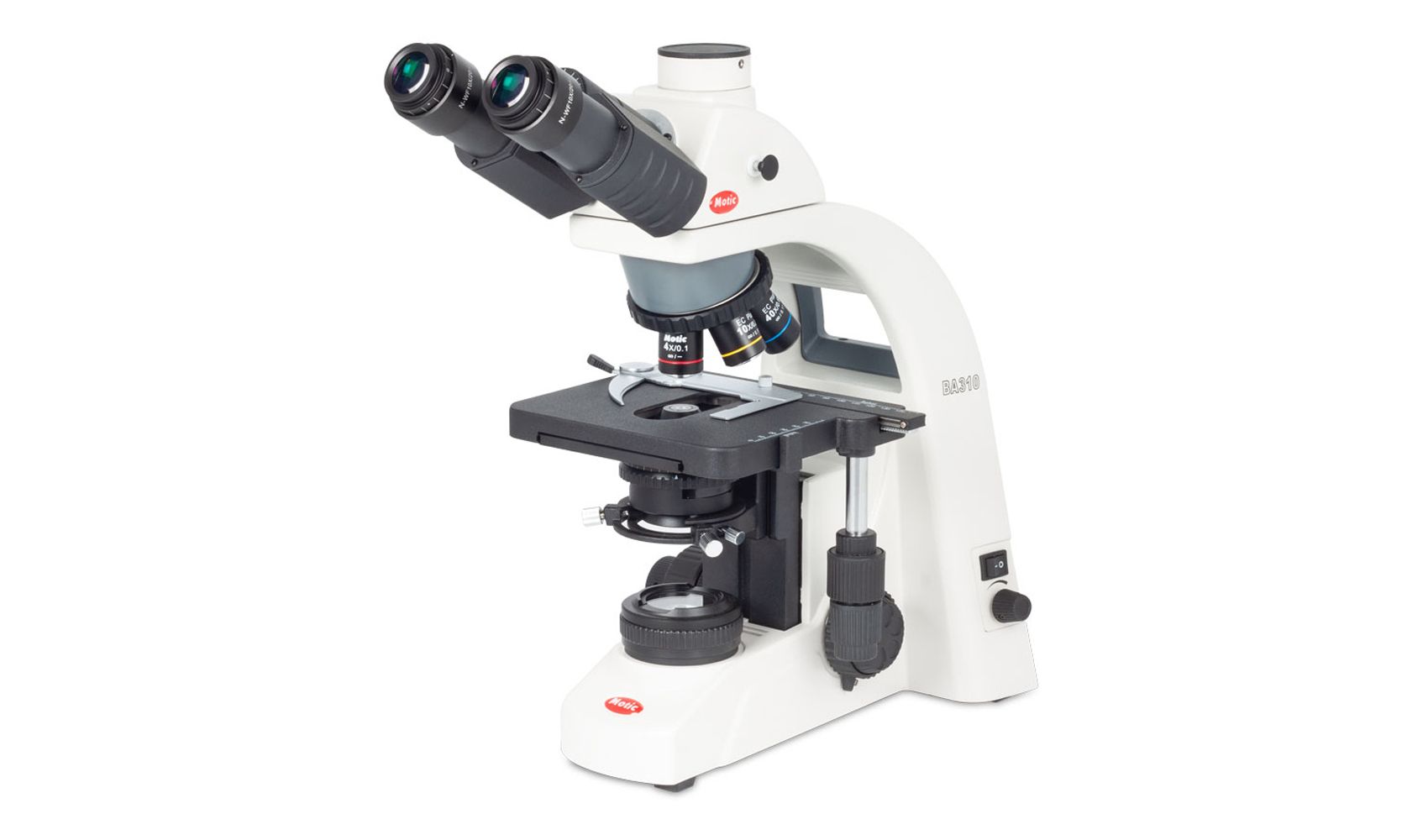

Phase contrast microscope Motic

Ref.: 12007/0308
Phase contrast microscope with phototube, suitable to be used with CASA system AndroVision®. Designed for the rigors of daily routine work in the demanding applications of sperm examination.
Add to request list


  • With negative 10x phase objective and 1 x C-mount camera adapter for AndroVision®
  • Requires temperature control unit for heating stage
  • Electrical connection: 100-240 V
  • Köhler illumination LED with intensity control
  • Microscope stage with specimen holder and right side Y and X travel knobs
  • Large 175 x 140 mm mechanical stage with heating system incorporated
  • Trinocular head with photo tube to connect to camera, 30° eyepiece position
  • Phase condensor with Ph1 and Ph2 lenses
  • Abbe condensor
  • Wide field eyepieces 10x with diopter adjustment on both eyepieces
  • Centering eyepiece
  • Dust cover
