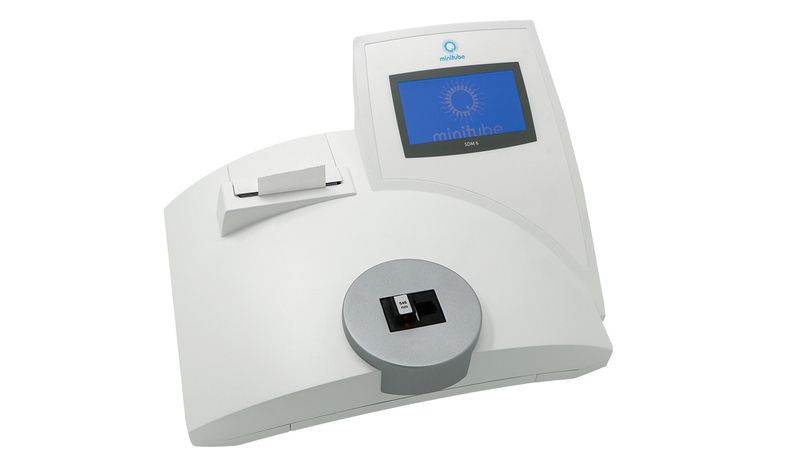

Photometer SDM 6

Ref.: 12300/0006
Used to determine semen concentration for bovine, porcine, ovine/caprine and equine including dose calculation. With integrated printer and touch screen display.
Add to request list

Product features

  • Serial interface for data transfer
  • Spectral range: 430 - 680 nm
  • Filter: 546 nm
  • LED light source
  • Use of 10 mm macro cuvettes
  • Analysis time: 2 seconds/sample
  • Digital display: result in billion of sperm/ml
  • Electrical connection: 110-230 V/50-60 Hz

Your benefits

  • Programs for semen concentration measurement of semen of several species and for extinction of light
  • Automatic calculation of extender volume and number of doses
  • Large touch screen, easy handling
  • Print out includes the following data: sperm quality and quantity, volume of diluent required and sperm per dose
