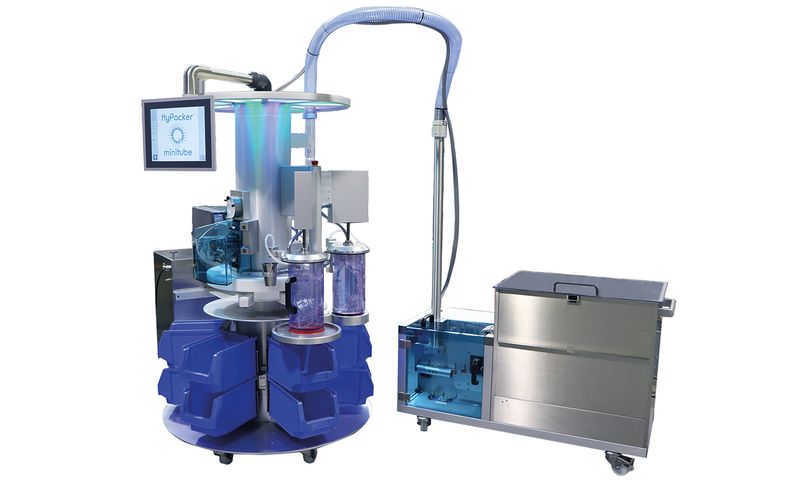

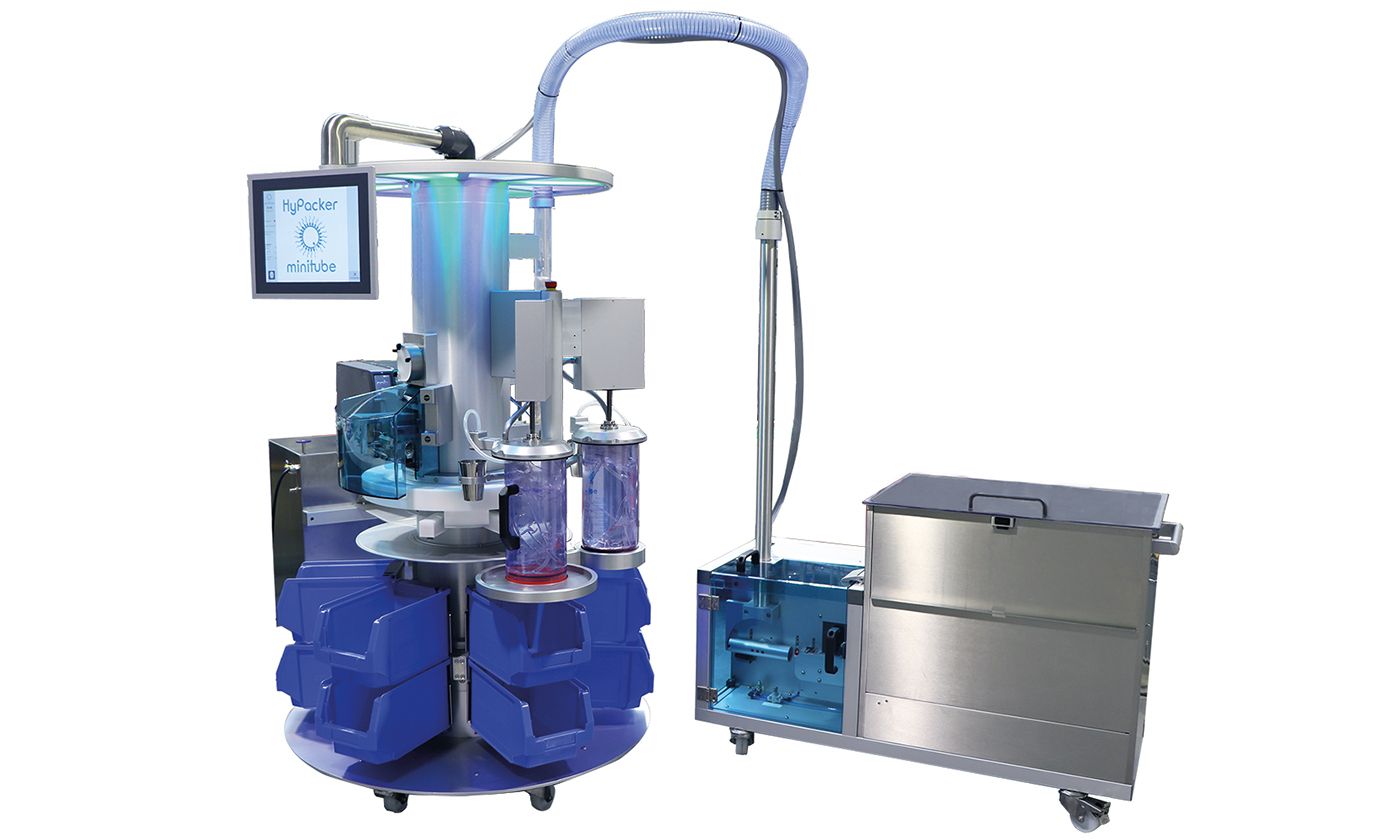

HyPacker, fully automated boar semen packaging machine

Ref.: 13208/4000
The HyPacker offers the highest capacity among the Minitube boar semen packaging machines and is the ideal solution for filling, sealing and labeling large quantities of tubes in a short time. Processing of standard and short PCAI tubes for single ejaculates or pools.
Add to request list

Product features

  • With ultrasonic sealing unit, tube magazine, second filling station for automatic change of the ejaculate, third filling station for two phase extender addition
  • High speed thermal transfer or thermal direct printer with barcode
  • Industry standard control unit, interface for laboratory software
  • Capacity: 1800 tubes/hour
  • Magazine capacity: max. 2100 tubes
  • Dimensions: 2200 x 2000 x 1100 mm (H x D x W)
  • Electrical connection: 230 V, 50/60 Hz

Your benefits

  • Speed of up to 1800 tubes per hour under production conditions due to double filling station for automated ejaculate exchange
  • Third tube filling station with integrated pump for optional extender addition
  • Processing of single ejaculates or pools and of different tube lengths
  • Filling with electronic weighing cells: enables adjustment of the filling level in every tube via software and ensures a very exact filling volume (± 1 ml)
  • Ultrasound sealing unit, welding gap easy to adjust
  • Hygienic design and easy cleaning: closed surfaces, all elements in protective casings, easy removal of single parts
  • Servo-powered tube transport and boxes carousel
  • Integrated lot sorting in boxes or bags
  • High speed thermal transfer printer (printer configuration via Ethernet)
  • 4 standard label formats
  • Communicates with Prism or IDEE and other laboratory software programs
  • Integrated barcode scanner and touchscreen for high userfriendliness
  • Detachable modular tube magazine (2100 tubes) for filling outside the lab area
  • Baldachin with colored illumination codes showing the operation status
