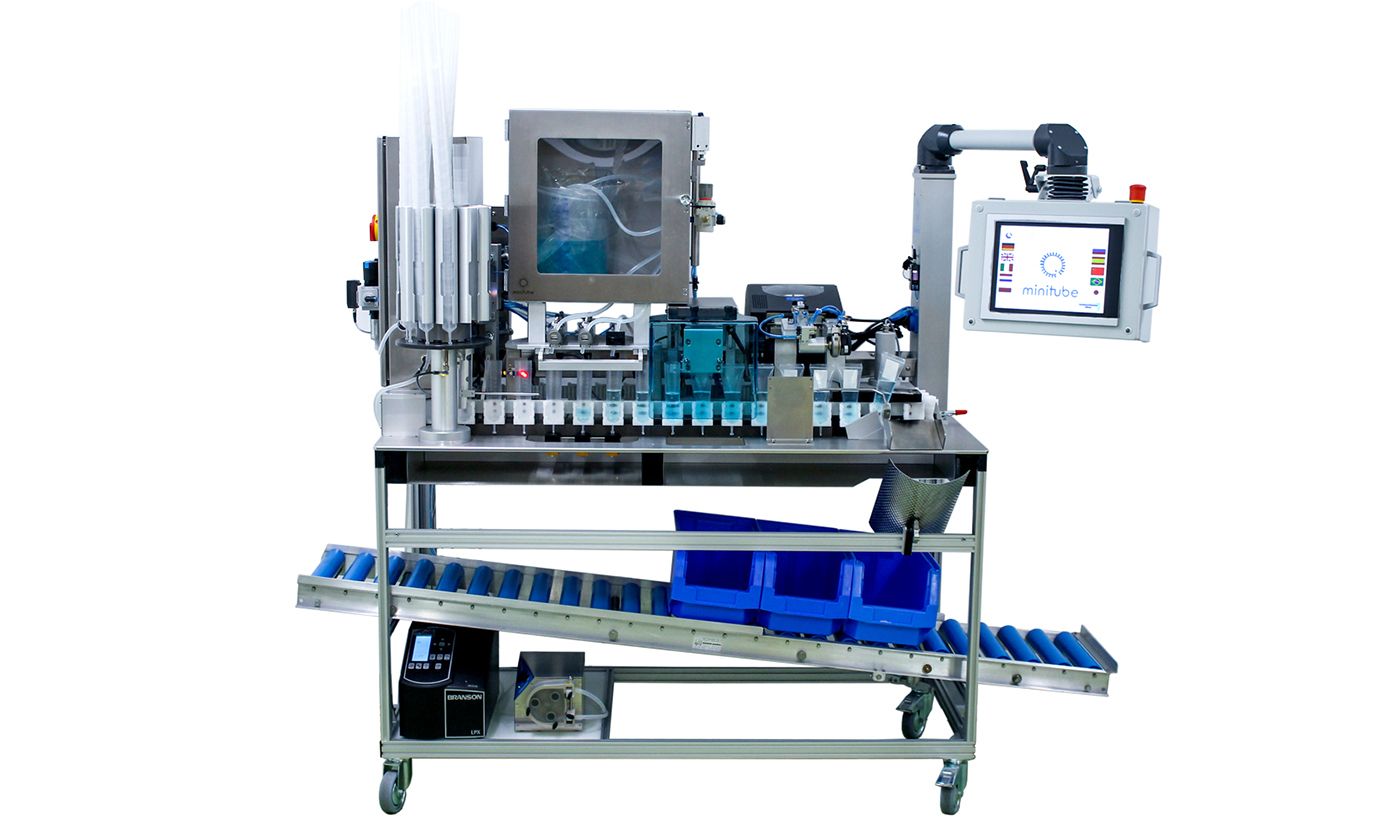

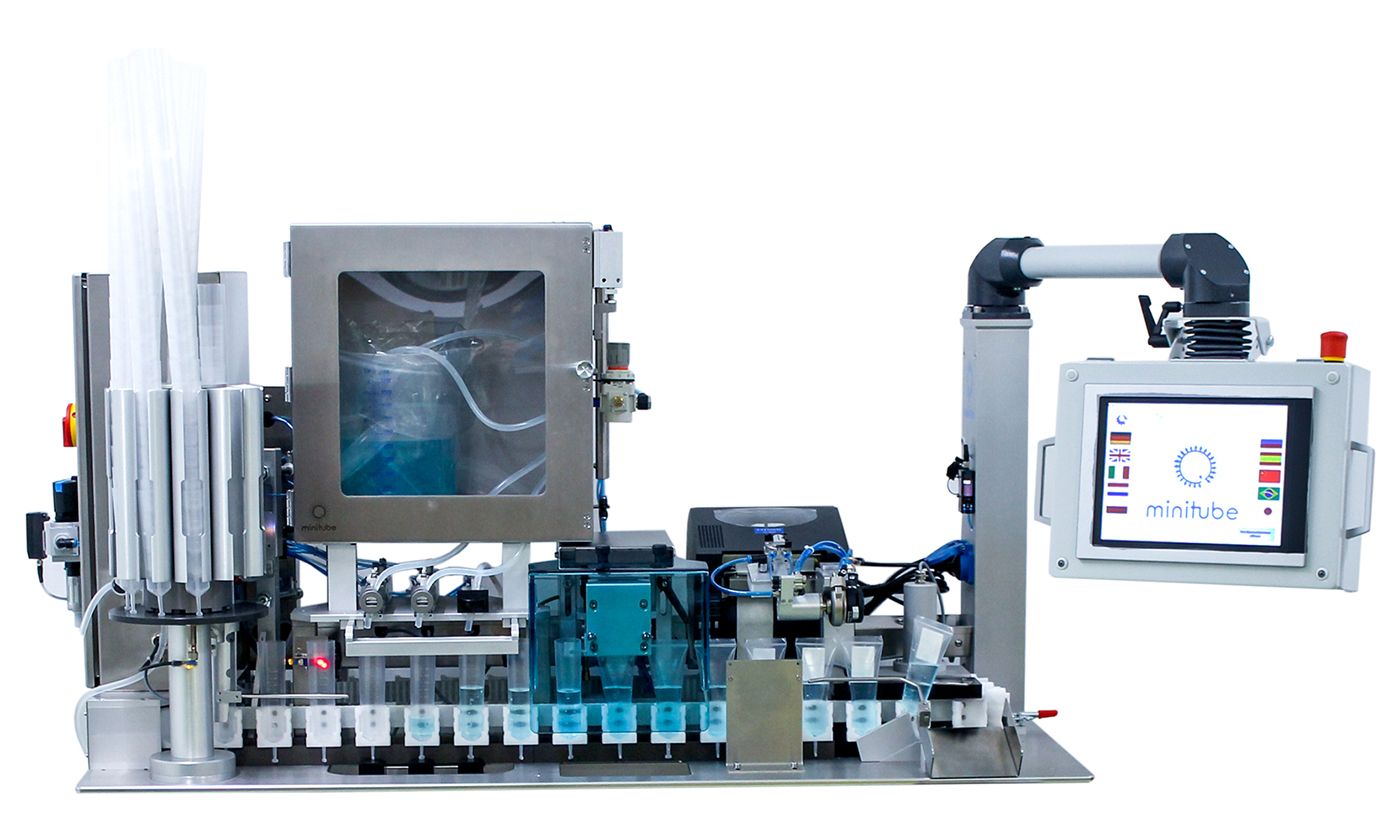

MiniBSP, fully automated boar semen packaging machine

Ref.: 13210/0005
For filling, sealing and labeling of boar semen tubes. Countertop model, with ultrasonic sealing and second filling nozzle for automatic ejaculate exchange. This fully automatic packaging machine for boar semen is a space saving table model and is suitable for the processing of up to 950 tubes per hour.
Add to request list

Product features

  • Processing speed of 950 tubes per hour in continuous operation
  • Automated, integrated tube magazine for 210 tubes
  • Adjustable sealing station for different tube sizes (30 ml to 90 ml)
  • Secure sealing of tubes with ultrasound
  • Fully automatic data transfer from and to lab software Prism10, Prism 3.9 and IDEE in real time
  • Internet capabilities for remote service access
  • Automatic labeling station: Labeling with barcodes, 2D-codes, PDF 417-codes and company logo
  • Control of filling level by electronic weighing cells: adjustment of the filling level via software with a filling accuracy of ±1 ml
  • Second filling station for tubes with automatic ejaculate change: while the machine is processing the first ejaculate, the second one can be prepared and the machine automatically switches to the second filling station (machine can be used without interruption)
  • Computerized monitoring system
  • Dimensions: 156 x 64 x 81 cm (W x D x H)
  • Electrical connection: 230 V/50 Hz or 110 V/60 Hz
